The cars, smartphones, and home appliances we use every day all function by exchanging electrical signals and power. Although hidden from plain sight, the wire harness is the core component that securely and reliably connects this vital flow. It acts as the industrial nervous system, bringing order to the complex mess of wires inside machines and breathing life into them. Just as no two nerves are identical, the types of harnesses required vary greatly depending on the product’s purpose and environment. Beyond a simple bundle of wires, let’s explore the various types and characteristics of wire harnesses optimized for different applications.

“What Are the Different Types of Harnesses—The Nervous System Unseen, Yet Driving the Machine?”

Medical Device Harness

➡️ Used in equipment that comes into direct contact with patients, medical harnesses require high insulation and safety standards. They must be capable of processing sensitive bio-signals and are manufactured to withstand repeated sterilization and disinfection processes. Furthermore, since medical devices are often operated continuously for long periods, these harnesses must deliver exceptional durability and reliability. Medical connectors typically feature a locking mechanism and waterproof structure to prevent accidental disconnection and ensure maximum stability once mated.

Therefore, medical harnesses are special-purpose assemblies built to far more sophisticated and stringent standards than standard commercial harnesses.

Robotics Harness

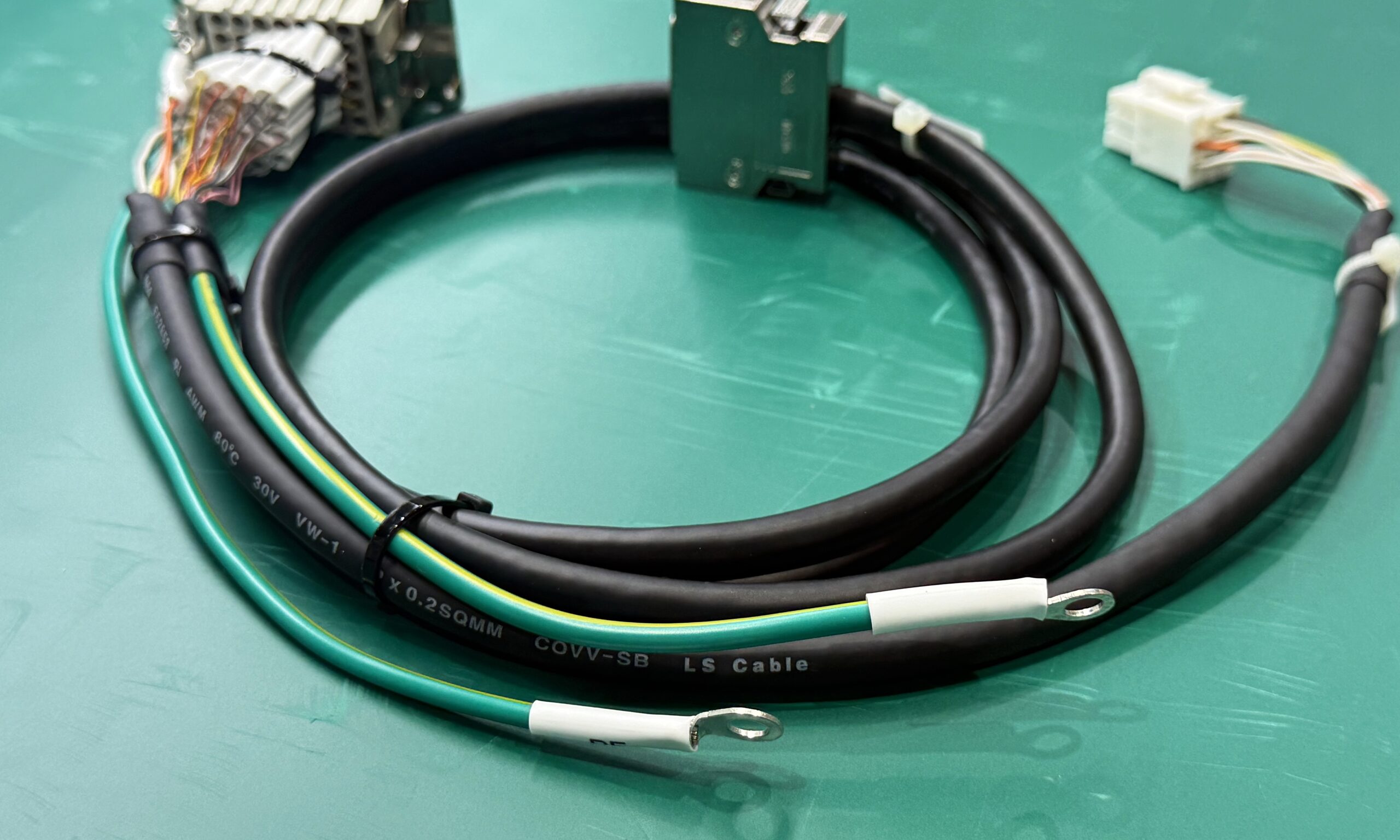

➡️ Unlike standard industrial harnesses, robotics harnesses are engineered to withstand continuous movement, high-speed operation, and repetitive flexing. Because they are optimized for dynamic environments—such as robotic joints, rotation, and sliding motions—flexibility, tensile strength, and electrical stability are critical. The specific requirements vary slightly depending on the type of robot, which can be categorized as follows:

🦾 Industrial Robots (Welding, Assembly, Handling): Heat resistance, flexibility, and high strength

🦾 Collaborative Robots (Cobots): Flexibility and lightweight design

🦾 Medical Robots: Low noise and high precision

🦾 Service Robots: Compactness and lightweight design

In short, robotics harnesses are advanced wiring solutions highly optimized for motion.

Battery & BMS Harness

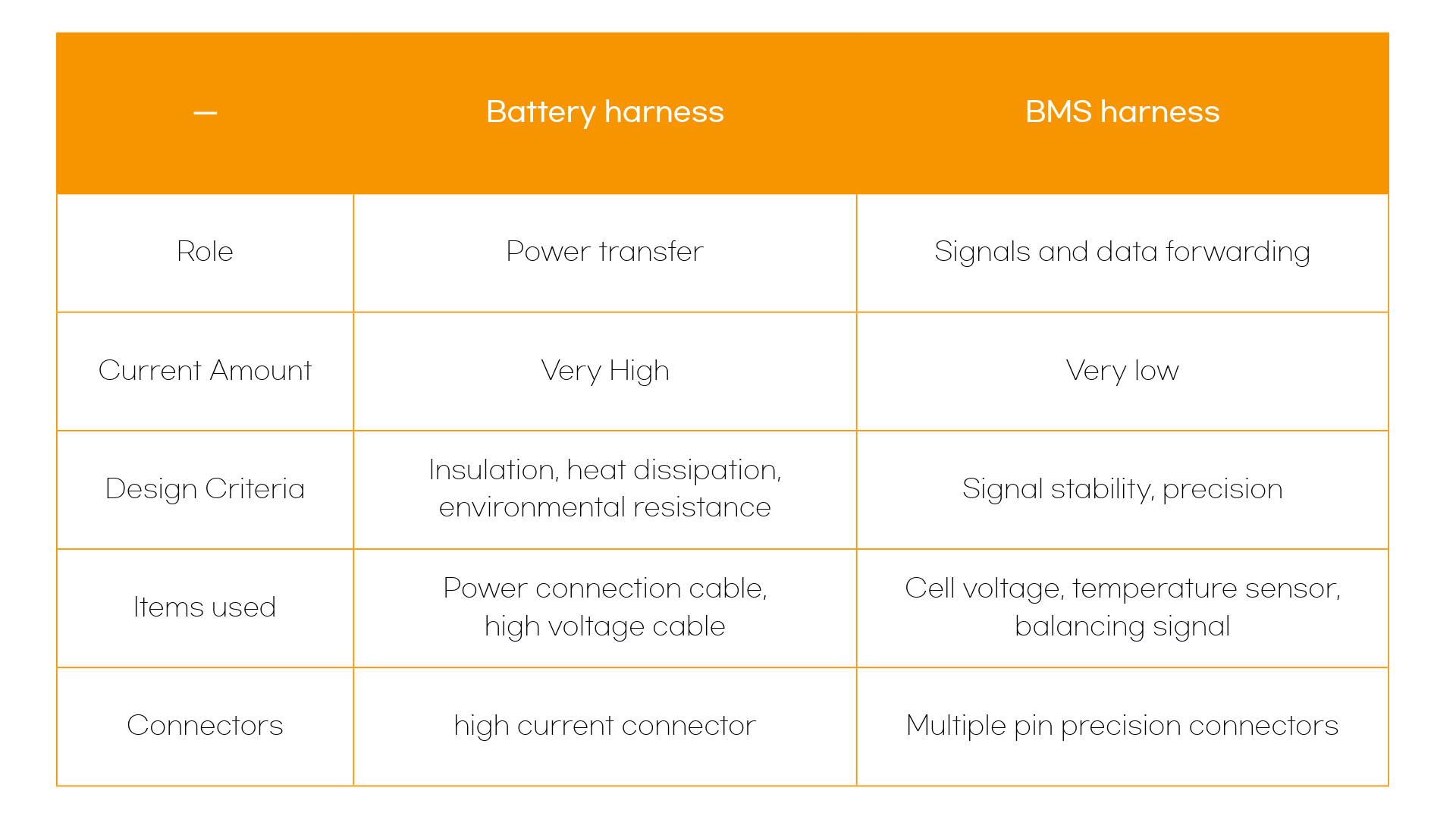

➡️ Battery harnesses are designed with structural integrity capable of withstanding high power and harsh environments. While they may seem similar, BMS (Battery Management System) harnesses serve a slightly different purpose: they measure the status of individual battery cells and transmit this data to the BMS circuit. Because of this, accurate signal transmission, insulation reliability, and EMI (Electromagnetic Interference) suppression are their core characteristics.

RF & High-Frequency Harness

➡️ This refers to ultra-high-precision communication harnesses with design structures completely distinct from standard power or signal harnesses. They are composed of specialized cables and connectors engineered to precisely transmit wireless signals and high-speed data. Because they handle signals in high-frequency bands, even a microscopic structural difference can significantly impact performance. Consequently, robust shielding capabilities and maintaining impedance matching are absolute prerequisites.

Waterproof Harness

➡️ A specialized harness designed to maintain electrical stability even in environments prone to water, moisture, dust, and chemical ingress. It demands significantly higher protection ratings and environmental resistance than standard harnesses. Beyond meeting strict IP (Ingress Protection) ratings, the wires and connectors must be engineered with a fully sealed structure to prevent liquid submersion or splashes from penetrating the wire contact points. A waterproof harness is not just about water resistance; it is an environmentally ruggedized harness capable of withstanding the elements as a whole.

Power & High-Current Harness

➡️ Engineered to reliably supply currents ranging from tens to hundreds of amperes (A) or more, this harness features thick conductors and exceptional insulation performance. Furthermore, because higher currents generate significant heat along lines and connectors—which can pose a fire hazard—thermal management is highly critical. A high-current harness must be robust enough to withstand both heat and vibration environments to ensure stable high-power transmission.

Military Harness

➡️ Used in military vehicles, fighter jets, communication equipment, and missiles, this is an ultra-high-reliability harness that complies with military standards (MIL-SPEC). It must be capable of withstanding extreme temperatures, and the manufacturer must be ITAR (International Traffic in Arms Regulations) registered.

“Why does a company manufacturing military harnesses need ITAR registration?❓”

-For radar, aircraft, military vehicles, and tactical equipment

-For connecting specialized electronic warfare systems

-High-reliability harnesses applied to missiles and weapon systems

-Items compliant with military standards

In addition to these characteristics, the design blueprints and specifications themselves can be classified as military technology, making compliance with ITAR regulations mandatory.

Aerospace Harness

➡️ Operating as the electrical signal interconnects in extreme environments—such as aircraft, helicopters, drones, satellites, and rockets—this is a specialized harness that demands ultra-high reliability, lightweight design, and rugged environmental resistance.

Since aerospace harnesses must maintain safety and reliability under the most severe conditions, they represent the highest tier of wiring solutions, featuring lightweight engineering, powerful shielding capabilities, and the use of aviation-specific MIL-SPEC connectors.

Once considered a simple “bundle of wires,” the wire harness of the future is evolving into a “high-speed data highway” and a “smart grid” that manages energy. As machines become smarter, the role of the wire harness—the nervous system connecting their interiors—will only grow more vital. Though hidden from view, the wire harness silently fulfills its duty at the deepest roots of technological innovation. We invite you to keep an eye on the continued advancements of wire harnesses and BK Harness.
